Tabular Data Node

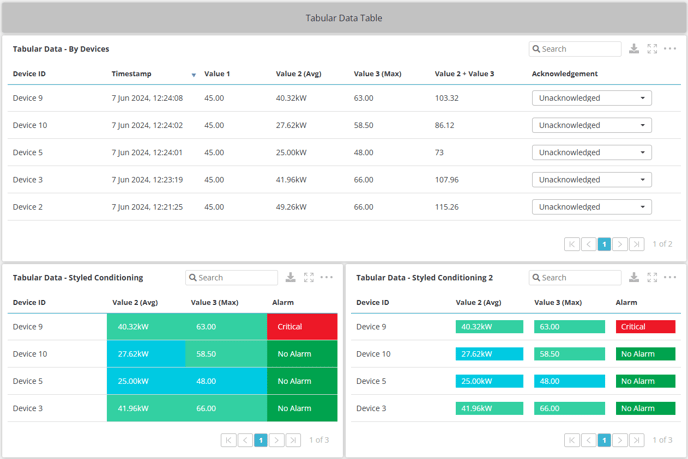

Tabular data visualizations organize data in tables, making it easier to read and compare values across different categories or time periods.

Inputs

The Tabular Data node has both mandatory and optional inputs. These are:

Input	Requirement	Comments
Column - Input Data Field	Mandatory	This is the field name within the incoming JSON payload that contains the data to be displayed on the widget.
If Input - Input Field Name	Optional	This is the field name within the incoming JSON payload that contains the data to be used for the in input condition (See below).

Functionality

The tabular data node is used to show the latest or calculated values for devices or device labels.

Outputs

If the node is configured with Multi Choice field type and to show devices, the table will send the JSON payload tied to the device and timestamp when the dashboard user selects an option from the dropdown list.

How to Use

Implementation

In the Rayven Workflow Builder:

Select Visualizations.
Drag the Tabular Data node to the canvas.
Connect the Tabular Data node to your input node.
Double click on the Tabular Data node to open the configuration window.

Configuration

Section: General
This section contains basic configuration elements required for any Tabular Data implementation
Field	Requirement	Comments
Widget Name	Mandatory	Enter a name for this node. This provides a handle to which you and others can refer, so it should be simple but meaningful and explain the node’s purpose.
Tabular Data Type	Mandatory	Select one of the options in the drop down menu: Regular (Default) Dynamic

Section: General (Tabular Data Type: Regular)
This section contains basic configuration elements required for any Tabular Data implementation
Field	Requirement	Comments
If input	Optional	This section allows you to set a condition for when data will be shown or hidden. Input Data Field: Enter here the field name that you would like the row to check. Operator: “=” If the field is equal to the value set, the condition will pass. “>” If the field is greater than the value set, the condition will pass. “<” If the field is less than the value set, the condition will pass. “Exists” If the field exists, the condition will pass. Value: Enter the value or string to compare the Input Data Field value against.
Input Data Field	Optional	This is the field name within the incoming JSON payload that contains the data to be displayed on the widget.
Operator	Optional	Choose a relevant condition to determine if the row will be shown or hidden. “=” If the field is equal to the value set, the condition will pass. “>” If the field is greater than the value set, the condition will pass. “<” If the field is less than the value set, the condition will pass. “Exists” If the field exists, the condition will pass.
Value	Optional	Is the value or string the field data uses to check for the set condition against the JSON field.
Visibility	Optional	In the drop down menu choose either: Show: for the rest of the data to be shown if it matches the condition set. Hide: for the rest of the data to be hidden if it matches the condition set.
Widget Refresh Interval (sec)	Mandatory	Configure how often the chart widget will refresh. The default is every 60 seconds.

Section: Columns (Tabular Data Type: Regular)
This section is where columns are added and defined. Tabular data tables can have multiple columns, but must have a minimum of one. The “X” at the end of the row will remove a column, the “+ Add Value” button below the columns will add a new column. The columns can be reordered by dragging them into position.
Field	Requirement	Comments
Column	Mandatory	The “X” at the end of the row will remove a column, the “+ Add Value” button below the rows will add a new column. The columns can be reordered by dragging them into position.
Input Data Field	Mandatory	This is the field name within the incoming JSON payload that contains the data to be displayed on the widget.
Display Name	Mandatory	This is the name for the column that will be displayed on the widget.
Field Type	Mandatory	A drop down menu that can be used to select from the following options: Workflow Field - Grab data from workflow. Custom Table Field - Grab data from table, require syntax confirmation to identify which table to read from. Event Date - Get timestamp for the record. Device - Take device ID from existing device table. Multi Choice - CSV to provide dropdown options for users to choose from. If a value is changed for tables showing devices, they will output the relevant payload, with the selected multichoice option. Workflow Date Field - Used specifically if the data is in a standard date format, which allows correct sorting to be done on the dashboard. Reference Field - Allows the usage of other columns for aggregation with standard operators such as /+- For Example:* [[Value 2 (Avg)]]+[[Value 3 (Max)]] where “Value 2 (Avg)” and “Value 3 (Max)” are the display name from the different columns. From To Field - Allows users to display a range of dates.
Function	Mandatory	Drop down list to select data function. Last value received Sum Average Min Max
Dashboard to link to	Optional	Drop down list to select a configured dashboard to link to from this column.
Aggregate	Optional	Average and sum options for the entire column.
Pre Symbol	Optional	Provide symbol to be added in front of every value within the column
Post Symbol	Optional	Provide symbol to be added at the end of every value within the column
Decimal Precision	Optional	Specifies the decimal precision for values in the column.
Thousands Comma	Mandatory	Drop down list to select: Commas - there will be comma separators at the thousand mark. No Commas - there will not be any comma separators at the thousand mark.

Section: Conditional Formatting
This section allows the user to set up a conditional formatting on the tabular data table.
Field	Requirement	Comments
Color Fill	Optional	Options to select from: Value Background Only - Colors only the value’s background Entire Cell - Colors the entire cell
Condition	Optional	Users are able to create various conditions by clicking the “+ Add Condition”.
Display Name	Optional	The name must be the exact same as the “Display Name” typed in the Columns.
Type	Optional	Drop down list to select: Alphanumeric Numeric
Range	Optional	At the end of the “Condition” row, select the “+” symbol to add a range for the conditional formatting.
Min Range (Only available when Numeric is selected as the Type)	Optional	Enter a minimum value for the conditional formatting. Workflow values can be used with the following format: [[range1]]. This allows custom ranges to be set for specific use cases.
Max Range (Only available when Numeric is selected as the Type)	Optional	Enter a maximum value for the conditional formatting. Workflow values can be used with the following format: [[range1]]. This allows custom ranges to be set for specific use cases.
Value (Only Available when Alphanumeric is selected as the Type)	Optional	Enter a value for the conditional formatting.
Color	Optional	Select a desired color you wish to see when the value received falls under the min-max range or the value set.

Section: Tooltip Info
Field	Requirement	Comments
Show Tooltip	Optional	When checked, it allows users to display their tooltip text on the widget.
Tooltip Text	Optional	This section only exists when “Show Tooltip” is checked. Users are able to write any tooltip message they desire which will be display on the widget.

Section: Conditional Link To
Allows users to link different columns and also different values to different dashboards.
Field	Requirement	Comments
Condition	Optional	Users are able to create various conditions by clicking the “+ Add Condition”.
Display Name	Optional	The name must be the exact same as the “Display Name” typed in the Columns.
Type	Optional	Drop down list to select: Alphanumeric Numeric Date
Default Dashboard to Link to	Optional	When none of the values meets the range’s conditions, the column will default the user to the dashboard selected in this section.
Range	Optional	Users input the range they desire, it can be in numeric, alphanumeric or date.
Dashboard to Link To	Optional	When the value meets the requirement of the range input by the user, it will link to the selected dashboard.

Section: General (Tabular Data Type: Dynamic)
This section is where the dynamic tabular data would automatically populate the table on the dashboard.
Field	Requirement	Comments
If input	Optional	This section allows you to set a condition for when data will be shown or hidden. Input Data Field: Enter here the field name that you would like the row to check. Operator: “=” If the field is equal to the value set, the condition will pass. “>” If the field is greater than the value set, the condition will pass. “<” If the field is less than the value set, the condition will pass. “Exists” If the field exists, the condition will pass. Value: Enter the value or string to compare the Input Data Field value against.
Input Data Field	Optional	This is the field name within the incoming JSON payload that contains the data to be displayed on the widget.
Operator	Optional	Choose a relevant condition to determine if the row will be shown or hidden. “=” If the field is equal to the value set, the condition will pass. “>” If the field is greater than the value set, the condition will pass. “<” If the field is less than the value set, the condition will pass. “Exists” If the field exists, the condition will pass.
Value	Optional	Is the value or string the field data uses to check for the set condition against the JSON field.
Visibility	Optional	In the drop down menu choose either: Show: for the rest of the data to be shown if it matches the condition set. Hide: for the rest of the data to be hidden if it matches the condition set.
Device - Display Name	Mandatory	This is the name for the column that will be displayed on the widget.
Visibility	Optional	In the drop down menu choose either: Show: for the rest of the data to be shown. Hide: for the rest of the data to be hidden.
Date - Display Name	Mandatory	This is the name for the column that will be displayed on the widget.
Visibility	Optional	In the drop down menu choose either: Show: for the rest of the data to be shown. Hide: for the rest of the data to be hidden.
Widget Refresh Interval (sec)	Mandatory	Configure how often the chart widget will refresh. The default is every 60 seconds.

Section: Group by Device Label
Field	Requirement	Comments
Device label name	Mandatory	There are no labels available in this box until you have saved at least one in the Device Labels section of the Workspace. Select a Label to use to filter devices.
Grouped	Mandatory	Select a method for grouping the widget on the dashboard from the dropdown: No Grouping (widget per device): one widget will appear for each device Group by device label value (Widget per label value): One widget will appear for each value of a label. For example, if the Label is ‘Color’ and there are the values ‘Green’ and ‘Gold’, then two widgets will be displayed, one with devices with Color Label equal to “Green” and one with devices with Color Label equal to “Gold” Group by device label name (One widget): Only one widget will be displayed and this will contain data from all devices.
Show on Table	Optional	Drop down list providing the option to select if devices will show on the tabular data node, or if device label values for the selected device labels will show. Show Devices Show Device Label Values
Calculation Interval	Optional	Set the interval for calculations performed on the tabular data node.
Units of Measurement	Optional	Drop down list of units of measurements for the selected calculation interval.
