      Scatter Plot Widget Node Configuration Guide

      The Scatter Plot Widget Node—also referred to as a Cartesian Chart—is a two-dimensional chart that displays data points on an X and Y axis. It is ideal for visualizing real-time relationships between two variables, detecting patterns, clustering, and





      Step-by-Step: How to Configure the Scatter Plot Widget Node

      1. Add the widget

        • Drag the Scatter Plot (Cartesian Chart) Widget Node from the Visualizations panel to the canvas.

      2. Connect the widget to the data source

        • Link the widget to the upstream workflow node that emits both the X and Y field values.

        • These fields must match the X-axis field name and Y-axis field name in your configuration.

        • Without this connection, the chart will not populate any data.

      3. Open configuration

        • Double-click the widget to open the settings window.

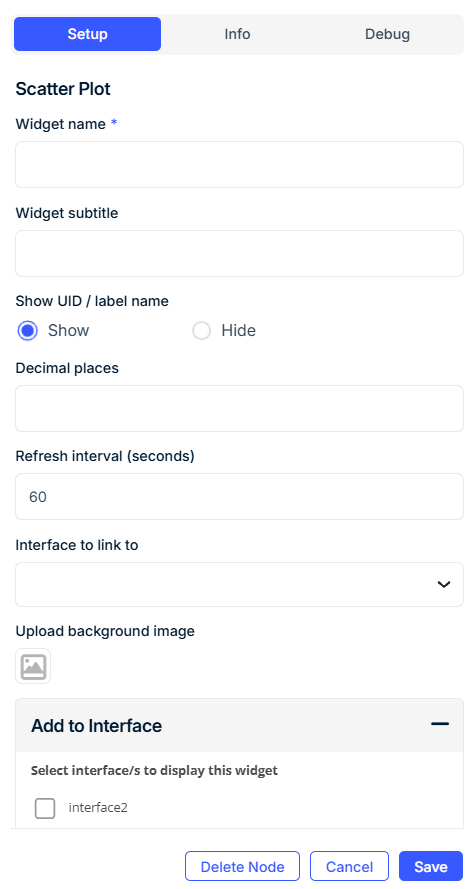

      4. Configure General Display Settings

        • Widget Name: Title of the widget (e.g., Efficiency Map).

        • Widget Subtitle (optional): Additional context or instructions.

        • Show UID / Label Name: Toggle to display the associated device name or label.

        • Decimal Precision: Set the number of decimals shown per point.

        • Auto-scale by min/max values (optional): Let the chart automatically adjust axis bounds.

        • Widget Refresh Interval: Set how often the chart refreshes (default: 60 seconds).

        • Upload Background Image (optional): Add an image for context (e.g., plant layout).

        • Dashboard to Link To (optional): Link to another dashboard interface on click.

      Axis Configuration

      X-Axis

      Field Requirement Description
      Name of X-axis* Required Label to show on the horizontal axis.
      X-axis Minimum / Maximum Value* Required Defines visible axis range.
      X-axis Center Value Optional Adds a vertical center line for visual reference.
      X-axis Field Name* Required JSON key from the payload used for X values.
      X-axis Function* Required Value calculation method: Last, Average, Min, Max, Sum.
      Calculation Interval Required if not using Last Length of the time window to aggregate.
      Units of Measurement Required if not using Last Choose from Seconds, Minutes, Hours, etc.


      Y-Axis

      Field Requirement Description
      Name of Y-axis* Required Label to show on the vertical axis.
      Y-axis Minimum / Maximum Value* Required Defines visible axis range.
      Y-axis Center Value Optional Adds a horizontal center line for visual reference.
      Y-axis Field Name* Required JSON key from the payload used for Y values.
      Y-axis Function* Required Value calculation method: Last, Average, Min, Max, Sum.
      Calculation Interval Required if not using Last Length of the time window to aggregate.
      Units of Measurement Required if not using Last Choose from Seconds, Minutes, Hours, etc.


       Color Rules (Optional)

      Apply custom color rules to data points based on conditions:

      Field Requirement Description
      Input Data Field Required JSON key to evaluate (usually X or Y key).
      Operator Required Select from =, <, >.
      Value Required Threshold to compare against.
      Color Required Color to apply (hex code or RGB).


       Add multiple rules using the Add Color button.

      Quadrants (Optional)

      Define quadrant background colors using center values as dividers:

      Quadrant Requirement Description
      Top Left Optional Color for upper-left quadrant
      Top Right Optional Color for upper-right quadrant
      Bottom Left Optional Color for lower-left quadrant
      Bottom Right Optional Color for lower-right quadrant


      Tooltip & Navigation

      Field Requirement Description
      Show Tooltip Optional Enable to show point info on hover.
      Tooltip Text Optional Custom tooltip content.
      Dashboard to Link To Optional Navigate to another dashboard when clicked.
      Upload Background Image Optional Use floorplans or schematics as chart backgrounds.


       Interface & Grouping

      Field Requirement Description
      Add to Interface Required Select dashboard interface(s) where this chart will appear.
      Select Label Required (if grouped) Choose a device label for grouping.
      Grouped Display Mode Required - No Grouping
      - Group by Label Value
      - Group by Label Name
      Number of Widgets to Display Optional Cap how many widgets appear if grouped.


       Use Cases

      • Track power vs. temperature over time

      • Plot accuracy vs. speed across devices

      • Visualize spatial positioning or floor-based data (with background image)

      • Segment zones or quadrants based on performance

       Best Practices

      • Use center lines and quadrants to mark critical thresholds visually.

      • Connect to a clean upstream node that only emits numeric values.

      • Color rules are especially useful when visualizing KPIs or threshold breaches.

      • Use background images to add context to spatial plots.

       Frequently Asked Questions (FAQ)

      Q: Can I plot multiple points at once?

      A: Yes, using grouping or label filters to differentiate data streams per widget.

      Q: Can I use color rules to highlight risk zones?

      A: Absolutely. Use the color picker rules to highlight any points that exceed thresholds.

      Q: What if I only want to show one quadrant?

      A: Set the axis min/max and center values to isolate the region of interest.

      Q: Can this chart update live?

      A: Yes, the widget refreshes based on the Widget Refresh Interval you configure.
