The OpenAI Node enables Rayven workflows to interact with OpenAI's large language models (e.g., GPT-4) by sending a prompt and receiving a generated response. It supports both static prompts and dynamic prompts built from incoming workflow payloads.
What It Does
This node integrates with OpenAI’s API to generate text-based output from a prompt. You can configure it to run:
-
Manually (on incoming payloads),
-
On a schedule (trigger),
-
Or conditionally (with activation filters).
The response is added to the payload and passed downstream under a configurable key.
Step-by-Step: How to Configure the OpenAI Node
-
Add the node
-
Drag the OpenAI Node from the External Services section into your workflow.
-
-
Enter API credentials and select a model
-
You must have an active OpenAI API key and access to the selected model.
-
-
Define your prompt source
-
Choose static text, a dynamic string from incoming payloads, or a file from FTP.
-
-
Optionally configure trigger logic
-
If enabled, the node will generate output on a schedule, not just on incoming payloads.
-
-
Connect downstream logic nodes
-
The generated text will be added to the payload at the specified output field name.
-

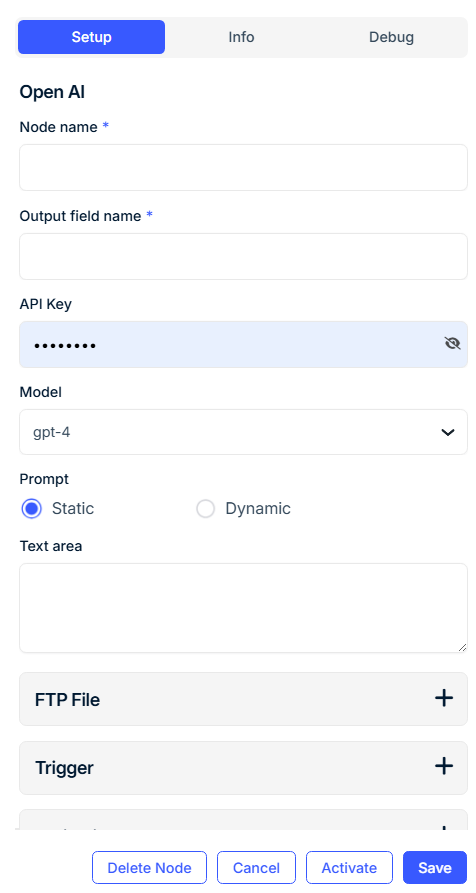

Configuration Fields
General Settings
| Field | Requirement | Description |
|---|---|---|
| Node Name* | Required | Internal reference for the node in your workflow. |
| Output Field Name* | Required | Key under which the OpenAI response will be added to the outgoing payload. |
| API Key* | Required | Your OpenAI API key. Keep this secure. |
| Model* | Required | Select the model to use. Options may include gpt-4, gpt-3.5-turbo, etc. |
Prompt Source
| Field | Requirement | Description |
|---|---|---|
| Prompt Source* | Required | Select how the prompt is defined: - Static: Manually enter the full prompt.- Dynamic: Extract from a field in the incoming payload.- FTP File: Load the prompt text from an FTP file. |
| Text Area | Optional | If using Static, this is where you type the prompt. |
| FTP Address / Username / Password | Required only if using FTP File. Connects to an FTP server to fetch the file contents as prompt input. |
Trigger (Optional)
| Field | Description |
|---|---|
| Enable Trigger | If enabled, runs automatically on a schedule. |
| Interval Between Trigger Events | Time between executions. |
| Interval Units | Time unit for scheduling (e.g., Minutes, Hours, Days). |
Activation Filters (Optional)
| Field | Description |
|---|---|
| Logical Operand | Choose how filters are combined (AND / OR). |
| Select Data Source Filter | Limit execution to specific UIDs or device labels. |
Output Example
Input Payload:
{
"product": "Rayven Edge Gateway",
"question": "What are its core features?"
}
With:
-
Prompt =
"Provide a summary of [[question]] for [[product]]." -
Output Field Name =
ai_response
Result:
{
"product": "Rayven Edge Gateway",
"question": "What are its core features?",
"ai_response": "The Rayven Edge Gateway enables real-time data ingestion, local processing, and secure transmission to cloud services. Key features include low latency response, device integration, and rule-based processing at the edge."
}
Best Practices
-
Keep prompts short but clear — language models respond best to well-structured input.
-
Use
[[field]]notation for dynamic prompts built from incoming payloads. -
Sanitize user input if using prompts that contain open-ended or user-submitted data.
-
Avoid long-running requests in trigger mode to prevent backlog accumulation.
-
Never store your API key in shared configuration files.
Use Cases
-
Auto-generate summaries, recommendations, or classifications
-
Explain complex data fields in plain language
-
Convert structured input into formatted output (e.g., alerts, scripts, reports)
-
Translate user input into commands or queries
-
Enrich telemetry or UI data for dashboards
FAQ
Q: Can this node use function-calling or vision models?
A: Not currently. Only text generation models are supported via standard prompt/response interaction.
Q: How is API rate limiting handled?
A: You are responsible for staying within your OpenAI API rate limits. Use Upload Interval and Triggers wisely.
Q: Can this node generate multiple fields in one output?
A: Yes — include structured output in your prompt (e.g., “Respond in JSON format”).
