      MQTT Node Configuration Guide

      The MQTT Node enables Rayven to receive real-time messages from devices and platforms using the MQTT protocol—a lightweight, publish-subscribe messaging model ideal for constrained devices and networks.

      What It Does

      This node subscribes to a specific MQTT topic from a broker and processes inbound messages. It is designed for low-latency, push-based data ingestion commonly used in IoT, SCADA, and telemetry systems.

       How to Use

      Prerequisites

      • A running MQTT broker (Rayven-hosted or external)

      • Devices publishing data to a defined topic

      • Payloads in structured JSON format

      • UID and timestamp fields must be identifiable in the payload (if applicable)

      Rayven Workflow Implementation

      1. In the Workflow Builder, open the Inputs panel.

      2. Drag the MQTT Node to the canvas.

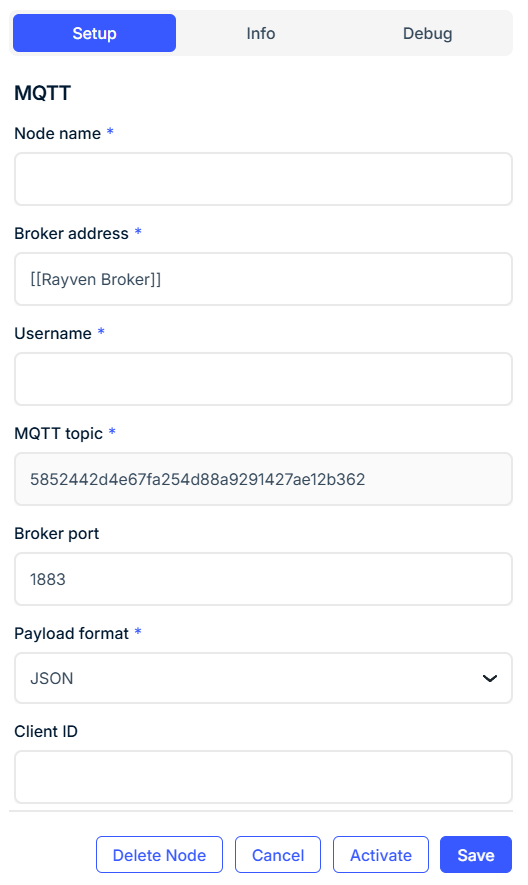

      3. Double-click the node to open the configuration window.

      1. Enter connection details and topic information.

      2. Map the UID and timestamp fields.

      3. Save and activate the node.

       Configuration Fields

      Field Requirement Description
      Node Name* Required Name for this node instance within the workflow.
      Broker Address* Required Hostname or IP of the MQTT broker. Example: mqtt.rayven.io or broker.hivemq.com
      Broker Port Optional TCP port for the broker. Default is 1883.
      Username* Required MQTT username used for authentication.
      Password Optional MQTT password (if required by the broker).
      MQTT Topic* Required The topic to subscribe to. Example: sensor/temperature
      Client ID Optional Custom client identifier. Leave blank to auto-generate.
      Payload Format* Required Format of incoming messages. Currently supports: JSON
      UID JSON Key Optional Path to the UID value inside the payload (e.g., device.id)
      Timestamp JSON Key Optional JSON key that holds the timestamp value from the message.
      Timestamp Format Optional Format of the timestamp (e.g., yyyy-MM-dd HH:mm:ss, epoch, epochms)
      Time Zone Optional Time zone of the originating device. Example: Australia/Sydney


       Example

      Example MQTT message received:


      {
      "device": {
      "id": "device_001"
      },
      "timestamp": "2025-07-15 14:45:00",
      "temperature": 23.6
      }

      Configuration:

      Field Value
      MQTT Topic sensors/temperature
      UID JSON Key device.id
      Timestamp JSON Key timestamp
      Timestamp Format yyyy-MM-dd HH:mm:ss
      Payload Format JSON


      Resulting output:


      {
      "uid": "device_001",
      "temperature": 23.6,
      "timestamp": "2025-07-15 14:45:00"
      }

       Best Practices

      • Match the UID field to a device ID known to Rayven (via Device Management).

      • Use retain flag cautiously on publishers—Rayven will ingest retained messages on connection.

      • Use Quality of Service (QoS) level 0 or 1 unless strict delivery is required.

      • Always validate topic structure and message format during integration testing.

       Use Cases

      • Ingest telemetry from IoT gateways or edge devices

      • Receive sensor readings (e.g., temperature, humidity, vibration)

      • Collect status updates from PLCs or SCADA systems

      • Integrate with MQTT-compatible platforms like AWS IoT Core, Azure IoT Hub (via bridge)

       FAQ

      Q: What if the topic receives non-JSON data?

      The node expects valid JSON. Use a Script Node to transform the data or validate it upstream.

      Q: Can I subscribe to multiple topics?

      Each MQTT node subscribes to one topic. For multiple topics, use one node per topic.

      Q: Can I use wildcard topics (+, #)?

      Yes, MQTT wildcards are supported for topic subscriptions. Use with care to avoid noisy ingestion.
