Intro to Machine Learning For Beginners

Overview

Rayven.io’s machine learning capabilities provide a robust, end-to-end environment for discovering patterns, predicting outcomes, and automating decision-making based on real-time data. Whether you're integrating sensor feeds, transactional records, or operational system logs, Rayven enables you to train, evaluate, and deploy models directly into your data workflows — without the need for a separate ML platform.

What Is Machine Learning?

Machine Learning (ML) is a subset of Artificial Intelligence that enables systems to learn from historical data instead of relying on explicitly programmed rules. Unlike traditional programming where logic is predefined, ML algorithms infer rules from examples, making them ideal for uncovering complex patterns in data.

Example
Predicting dust dispersion from a quarry based on wind data would be difficult to code manually. With ML, you can feed the model data on wind strength, dust levels, and distances, and it will learn to make predictions based on those inputs.

Machine Learning vs. Traditional Programming

Machine learning doesn't explain why something happens (causation), but it excels at identifying what is likely to happen based on past trends (correlation).

When to Use Machine Learning

ML is best suited for scenarios where relationships between variables are unclear, dynamic, or too complex to hard-code. Common indicators that ML is appropriate:

• Your data is complex, multivariate, or non-linear

• You need rules that evolve over time

• You're exploring hypotheses or looking for hidden patterns

Example Use Cases in Rayven

• Predicting customer churn based on usage data

• Forecasting machine failures based on historical sensor trends

• Classifying incoming support tickets by urgency level

What You Need for Success

1. Quality Data

You need both:

• Breadth – Enough variables to capture relevant behavior

• Depth – Historical data across a long enough time range

2. Labeled Outcomes

To train supervised models, you'll need data that pairs inputs with known results (e.g., machine readings + known failure events).

3. Feature Engineering

You may need to:

• Normalize units

• Convert categorical data into numeric form

• Remove irrelevant or noisy features

4. Contextual Understanding

ML can show you patterns, but humans must interpret them. Subject matter expertise ensures model outputs make sense in your real-world process.

5. Predictive Boundaries

Models are best at making predictions within the range of training data. For example, a model trained on temperatures between 5°C and 15°C may be unreliable at 100°C unless retrained with expanded data.

How to Build a Machine Learning Model in Rayven

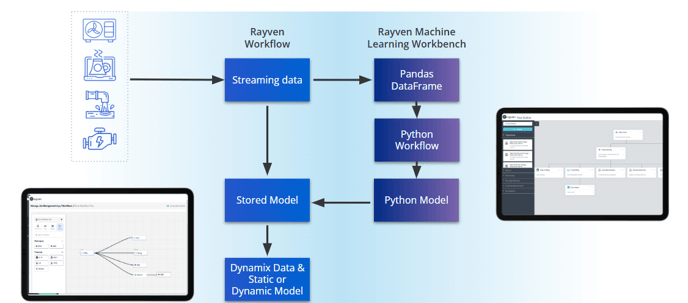

Rayven.io simplifies machine learning development with built-in workflows, no-code modeling tools, and real-time deployment. You can train models within the platform or import external ones.

Step-by-Step Process

1. Formulate a Hypothesis
   Example: “Vibration spikes and temperature changes might predict equipment failure.”

2. Collect Data
   Include all relevant variables, covering a broad time span.

3. Cleanse Data
   Remove duplicates, fill missing values, eliminate noise.

4. Label and Transform
   Match inputs with known outcomes, and normalize or encode features if needed.

5. Select Model Type
   Choose from regression, classification, anomaly detection, or other supported types.

6. Train the Model
   Tune features and hyperparameters. Rayven supports visual testing and performance tracking.

7. Evaluate Performance
   Compare results from multiple models using accuracy, precision, recall, or custom scoring metrics.

8. Deploy into Workflow
   Use Rayven’s Workflow Builder to apply the model to live data streams and visualize outputs in dashboards.

9. Monitor and Reassess
   Continuously review model accuracy. Retrain or adapt as data patterns evolve.

Example: Equipment Failure Prediction

Goal: Predict equipment breakdowns in a manufacturing line.

• Step 1: Hypothesize that high vibration + rising temperature = failure

• Step 2: Collect sensor logs over 6 months

• Step 3: Label data where failures occurred

• Step 4: Clean missing timestamps, normalize units

• Step 5: Train multiple models (e.g., logistic regression, decision trees)

• Step 6: Choose the model with the best performance

• Step 7: Deploy in workflow → trigger alerts when failure pattern is detected

• Step 8: Review and refine model monthly as new data arrives

Summary

Rayven.io gives you all the tools to build and deploy machine learning models directly into real-time applications. By following a structured ML approach — from data preparation through training and deployment — you can:

• Automate predictions

• Detect anomalies before they become problems

• Make data-driven decisions faster and more reliably

Whether you're improving operations, forecasting performance, or personalizing user experiences, machine learning in Rayven unlocks scalable intelligence without needing to manage infrastructure or code-heavy pipelines.
