      File-Based Workflows in Rayven (CSV, FTP, SFTP, Document Processing)

      Rayven supports robust file-based data ingestion and export through CSV, FTP, and SFTP protocols, enabling automation around structured and semi-structured files.

      This allows seamless integration with legacy systems, external partners, and batch data operations.



      Supported File Types & Protocols

      • CSV Files: Flat files with comma-separated values, ideal for tabular data exchange.

      • FTP/SFTP: Secure transfer protocols used to ingest or push files to remote servers.

      • Local Uploads: For development, simulation, or manual testing.

      • Document Files (PDF, Word, Google Docs): When combined with generative AI, Rayven can extract and process information from semi-structured documents.

      Importing Files (File Ingestion)

      To ingest structured files into your workflow, use:

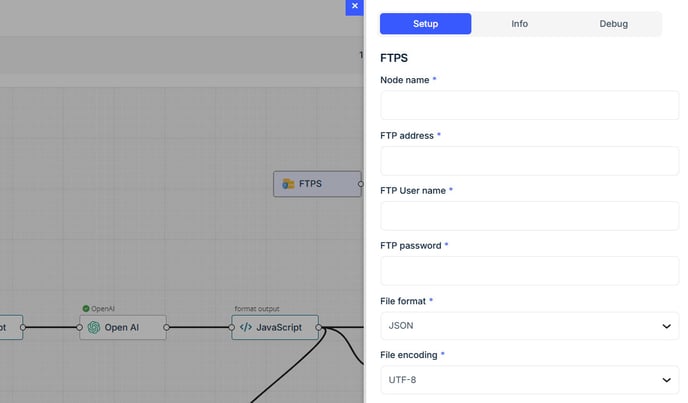

      FTP-input

      FTP/SFTP Input Node

      • Configure:

        • Host, port, username, password (or key-based auth)

        • File path or folder

        • Polling interval (e.g., every 10 minutes)

        • Filename filters (e.g., *.csv, daily_log_*.txt)

      • Supports secure polling and event-driven file detection.

      CSV Input & Parsing

      Once a file is detected:

      • Pass it to the CSV Parser Node.

      • Configure:

        • Header row (present or not)

        • Field delimiter (, or ;)

        • File encoding (UTF-8, etc.)

      • Output is structured as a list of row objects.


      Writing and Exporting Files

      Rayven supports file generation and delivery using:


      FTP-node

      FTP/SFTP Output Node

      • Configure:

        • Destination FTP/SFTP server, credentials, and file path

        • Filename templates with variables (e.g., report_.csv)

        • Overwrite or append mode

      • Output format:

        • CSV (default)

        • JSON or XML (optional via formatting nodes or templates)

      Processing Uploaded Documents with Generative AI

      In addition to structured files, Rayven can process unstructured documents using a combination of file ingestion and Generative AI:

      Supported File Types:

      • PDF

      • Microsoft Word (.docx)

      • Google Docs (downloaded as .docx or .pdf)

      • Text files (.txt)

      How It Works:

      1. Upload or detect documents via FTP/SFTP Input Node.

      2. Route file content to a Generative AI Node.

      3. Extract:

        • Summaries

        • Key fields or metrics

        • Actionable insights

      4. Use parsed or summarized output in:

        • Workflow logic (e.g., if document mentions "urgent", trigger alert)

        • Table updates

        • Dashboards (render results in an HTML Node or widget)

      Example: A PDF report is uploaded nightly → AI summarizes key findings → Workflow sends a Slack message with summary + stores metadata in Rayven tables.

      Common Use Cases

      • Ingesting telemetry logs or batch data from remote systems

      • Importing lookup tables (e.g., pricing, customer lists) for enrichment

      • Pushing processed data summaries (e.g., daily reports) to partners

      • Reading external reports (PDF, Word) and extracting actionable content with LLMs

      • Archiving workflow results as downloadable files

      Best Practices

      • Validate file structure with test data before enabling automation

      • Use file naming conventions with timestamps or unique IDs

      • Log results of each import/export action into Rayven tables for traceability

      • Clean up remote directories to prevent reprocessing old files

      • Secure credentials using environment variables or Rayven secrets manager

      • Document expected file formats and fallback handling logic

      Integration with Dashboards and MySQL Tables

      • Ingested CSV or document data can be mapped to Rayven’s internal MySQL tables (Primary or Secondary).

      • Parsed data can feed:

        • Dashboards and HTML nodes

        • Alert logic (e.g., file contains critical term)

        • Workflow decisions, transformations, or control actions

      • Exported files (via SFTP Output Node) can reflect processed metrics, filtered logs, or calculated summaries.

      Q&A

      Q: Can I process files other than CSV?
      A: Yes. Rayven supports .txt, .json, .xml, and documents like PDF or DOCX via GenAI-based processing.

      Q: How often can I poll for new files?
      A: The FTP/SFTP Input Node allows polling intervals as low as every few minutes. Choose based on file arrival patterns and processing needs.

      Q: How do I avoid reprocessing the same file?
      A: Use file renaming, archival, or deletion options in the Output Node, or log filenames to prevent duplicates.

      Q: Can I push files to multiple destinations?
      A: Yes. Use multiple FTP Output Nodes with different configurations in the same workflow.

      Q: Is file content secure during transfer?
      A: Yes. Rayven supports encrypted transfers (SFTP/FTPS), and credentials can be securely stored in the environment.

      Q: Can I extract structured values from a PDF?
      A: Yes. Rayven’s Generative AI Node can parse uploaded PDFs and extract structured data, which can then be mapped or stored.
