      Drop Down Widget Node Configuration Guide

      The Drop Down Widget Node provides a dropdown menu on the dashboard that allows users to select a value from a list of predefined options. It's commonly used for category selection, mode switching, filtering, or any form of structured decision-making


      What Is a Drop Down Widget?

      A Drop Down Widget is a user interface element that lets users choose one option from a list. This ensures consistent input, avoids manual entry errors, and provides a clean, user-friendly way to apply configuration, assign categories, or control devices.

      Typical use cases include:

      • Selecting device modes (Auto, Manual, Maintenance)

      • Assigning labels or tags (High, Medium, Low)

      • Filtering dashboard or workflow behavior by user-selected options

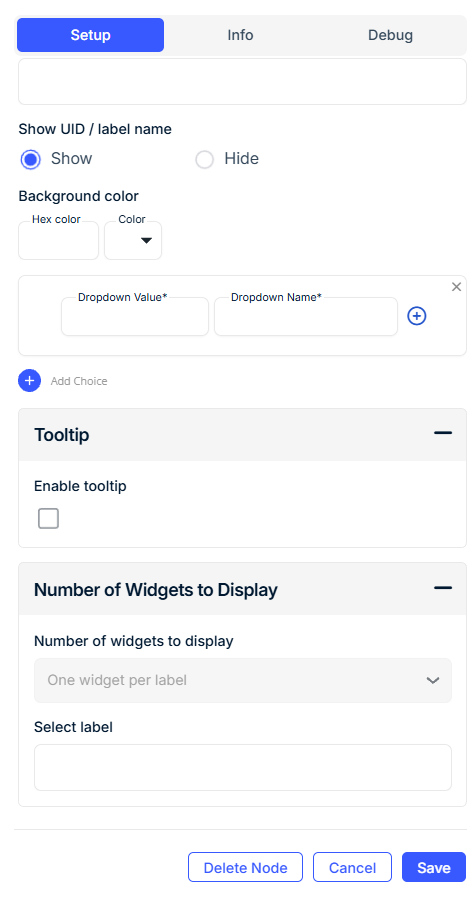

       Step-by-Step: How to Configure the Drop Down Widget Node

      1. Add the node to your workflow

        • Drag the Drop Down Widget Node from the Controls panel onto your canvas.

      2. Open configuration

        • Double-click the node to open the settings window.

      3. Set Widget Basics

        • Widget Name: Display title of the dropdown (e.g., Select Mode, Choose Priority).

        • Widget Subtitle (optional): Contextual message shown below the title.

        • Show UID / Label Name: Optionally show the associated device ID or label.

      4. Define Output Behavior

        • Output JSON Key (also called Data Field Name): The key in the workflow payload where the selected value will be stored.

      5. Add Dropdown Options

        • For each option, define:

          • Dropdown Name: What the user sees (e.g., High, Critical)

          • Dropdown Value: What is sent in the outgoing JSON (e.g., "H", "C")

        • Use Add Row to Dropdown to insert more options.

        • Use Add Child Row to Dropdown for grouped/nested values under a parent category.

      6. Customize Appearance

        • Background Color: Choose a background color using a hex code or color picker.

      7. Enable Tooltip (optional)

        • Enable and define a Tooltip Text to help users understand the widget’s purpose.

      8. Configure Grouping and Display Logic

        • Select Label: Choose a saved device label (e.g., Zone, Location) to filter and group widgets.

        • Grouped Display Mode:

          • No Grouping: One widget per device

          • Group by Label Value: One widget per label value (e.g., "East", "West")

          • Group by Label Name: One widget aggregating all devices under the label

        • Number of Widgets to Display: Optionally limit how many widgets appear.

       Configuration Fields

      General Settings

      Field Requirement Description
      Widget Name* Required The title of the dropdown as seen on the dashboard.
      Widget Subtitle Optional Descriptive text shown below the widget title.
      Output JSON Key* Required The key in the JSON payload where the selected value will be saved.
      Show UID / Label Name Optional Toggle to show device UID or label in the widget display.


      Dropdown Options

      Field Requirement Description
      Dropdown Name* Required The label that appears in the dropdown list.
      Dropdown Value* Required The value passed to the workflow when this option is selected.
      Add Row to Dropdown Optional Add additional options to the dropdown.
      Add Child Row to Dropdown Optional Create nested options grouped under a parent selection.


       Use child rows when organizing related options under a single category (e.g., device types, locations, categories).

      Appearance

      Field Requirement Description
      Background Color Optional Widget background color in hex format (e.g., #1abc9c).


      Tooltip Settings

      Field Requirement Description
      Enable Tooltip Optional Show a tooltip when users hover over the widget.
      Tooltip Text Optional The content of the tooltip.


      Grouping & Display Logic

      Field Requirement Description
      Select Label Mandatory (if grouping) Select a device label for filtering/grouping the widget.
      Grouped Display Mode Mandatory - No Grouping: One widget per device
      - Group by Label Value: One widget per label value
      - Group by Label Name: One widget showing all devices
      Number of Widgets to Display Optional Limit how many widgets appear when grouping is enabled.


       Use Cases

      • Choose between device states (e.g., Running, Idle, Stopped)

      • Select alert categories or priorities

      • Apply tags or classifications for downstream filtering

      • Feed conditional logic with structured user input

       Best Practices

      • Keep Dropdown Names user-friendly; use concise Values for logic.

      • Use Tooltip Text to help users understand selection impact.

      • Use Child Rows to visually group related options under a parent.

      • Apply labels and grouping to reduce clutter and simplify navigation.

       Frequently Asked Questions (FAQ)

      Q: Can I allow users to select more than one option?

      A: No. The Drop Down Widget Node supports single selection only. For multi-selection, consider a checkbox-based control.

      Q: Can dropdown values be dynamic?

      A: No. Dropdown options are statically defined in the widget configuration.

      Q: What format is used for sending the selected value?

      A: The selected Dropdown Value is sent as the value of the configured Output JSON Key in the workflow payload.

      Q: Can I group dropdowns by device category?

      A: Yes. Use Grouped Display Mode with Select Label to show dropdowns per label value or group.
