Data Movement Between Tables & Workflows

How structured and unstructured data flows dynamically between tables and workflows in Rayven applications.

Overview

In Rayven, workflows act as the dynamic processing engine for your application, while tables are used to persist structured data. Data movement between these components is central to how Rayven applications operate—allowing records to be read, enriched, updated, or generated on demand.

This article explains how data moves between tables and workflows, how to read from and write to tables using workflow nodes, and how to chain workflows together for modular logic.

Moving Data Between Tables and Workflows

Rayven provides three primary methods to move data between tables and workflows:

Method	Description	Use Case
Query Table Node	Reads data from a Primary or Secondary Table into the workflow	Enrich a workflow with stored values
Update Table Node	Writes data from a workflow into a Primary or Secondary Table	Create or update records from processed inputs
UI Code Node (JavaScript)	Uses `getDataFromTable` function to fetch data directly	Dynamic interaction from custom widgets or forms

These methods give you flexibility to dynamically process and persist structured data as part of your logic flows.

Reading from Tables from Workflows

Rayven provides two methods for reading structured data from tables into workflows:

1. Query Table Node

Use the Query Table node to retrieve data from either a Primary or Secondary Table and bring it into your workflow's payload.

Key configuration options:

Node name: Label for the node
Output JSON keys: Where to store the result in the payload
From Table: Choose the table to query
Select Columns: Use @ to select columns or inject dynamic values
WHERE: Add filter conditions statically or dynamically

Dynamic queries using payload keys
You can populate the Select Columns and WHERE fields using dynamic keys from the incoming JSON payload. Use the ##key## format:

Example input payload:

json

CopyEdit

{
  "columns_to_query": "product_uid,product_name,product_description,product_price,product_created_date",
  "sql_query": "product_price > 100"
}

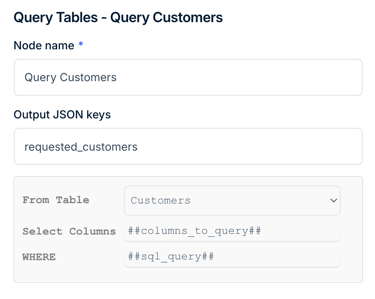

Dynamic Query Table configuration:

Select Columns: ##columns_to_query##
WHERE: ##sql_query##

This enables fully dynamic queries that adapt to the data passed into the workflow.

Example Use Cases:

Load product details when a quote is submitted
Fetch a user profile based on UID
Retrieve configuration data for calculations

2. UI Code Node – `getDataFromTable()` Function

In custom widgets built using the UI Code node, you can fetch table data at runtime using the getDataFromTable() JavaScript function.

javascript

CopyEdit

getDataFromTable('table_Id', 'Return_Function_Name', 'Lookup_Name'(optional), 'Filter_By_Value'(optional), 'Row_Count'(optional));

Parameters:

table_Id – ID of the Primary or Secondary Table
Return_Function_Name – Name of your JS callback function
Lookup_Name – (Optional) Lookup field name
Filter_By_Value – (Optional) Filter the query
Row_Count – (Optional) Limit number of rows returned

This method is ideal for interactive widgets like dropdown selectors or contextual sidebars.

Writing to Tables from Workflows

Rayven workflows can also write structured data back to Primary or Secondary Tables using the Update Table node.

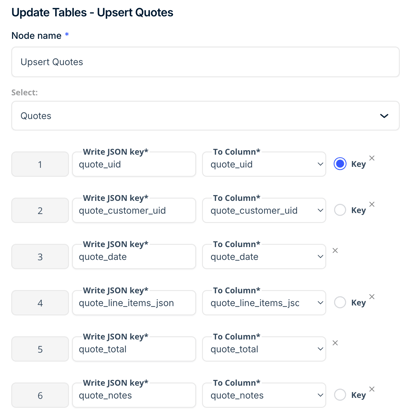

Update Table Node

Use the Update Table node to save new rows or update existing ones in your structured tables. This operation does not return data from the table itself, but the node will output the data it wrote as part of the workflow payload—helpful for downstream confirmation or processing.

Key configuration options:

Node name: Identifier for the node
Select Table: Choose the Primary or Secondary Table
Write JSON key: The key in the payload whose value will be written
To Column: The table column to write to
Key: Optionally designate this as the Key Column (used to match existing rows)

The node's output JSON payload will reflect what was written, allowing you to log or pass that data along to another node.

Example Use Cases:

Save submitted form data to a Contacts table
Log a new Quote or Task record
Update the status of a row after processing

Iterative Workflow Execution Over Table Rows

Rayven workflows can be set to run:

Once per workflow execution (default)
For each row in the Primary Table
For each row matching a label filter

This is configured in Trigger or Connector nodes and is essential when applying logic to many records dynamically. This allows for record-by-record processing, useful for scheduled updates, automation over subsets, or alert generation.

Example:
A workflow might run every hour and process all customer records with a Status = Pending label.

Passing Data Between Workflows

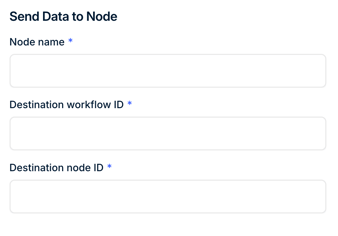

To modularise complex workflows, Rayven supports inter-workflow communication via the Send Data to Node:

Sends any received JSON payload from one workflow
Receives it in a target workflow via the nominated node
Allows chaining of logic across multiple workflows

Use cases:

Shared enrichment logic used by multiple workflows
Sending raw input to one workflow and delegating processing to another

Important Considerations

Workflows run independently from tables. Tables are persistent storage; workflows are logic engines.
Workflow data is unstructured and time-stamped. All workflow activity is stored in the Cassandra time series database, separate from the tables.
Table data must be actively pulled in or written to. Workflows only access table data when you explicitly use nodes to do so.
Inspect Data tab on every node helps trace what data is moving through and how it changes at each step.

Best Practices

Modularise logic: Keep read/write operations separate from transformation steps for clarity.
Use Inspect Data: Check node-level payloads frequently to understand how your data is flowing.
Validate writes: Ensure your Update Table writes map to valid Key Columns or UIDs.
Use the right tool: Prefer Query Table for processing table data through workflows, getDataFromTable() for interactive widgets.

Summary

Rayven gives you flexible tools to move structured data between tables and workflows. Whether you're pulling records for decision logic, writing results after processing, or dynamically fetching values in a custom widget, you have three robust options:

Query Table: Workflow-based retrieval
Update Table: Workflow-based saving
getDataFromTable(): UI-based lookup in custom widgets

This separation of logic and storage helps maintain scalable, modular, and reliable apps.

FAQs

Can I read and write to both Primary and Secondary Tables?
Yes. Both Query Table and Update Table nodes support both table types.

Does the UI Code node require a query node to read from a table?
No. It can call getDataFromTable() directly using JavaScript.

What happens if I try to update a row without a matching UID or Key Column?
A new row will be created automatically.

Can workflows write to multiple tables?
Yes. You can add multiple Update Table nodes in a single workflow to write to different tables.

Do workflows automatically read from or write to tables?
No. Workflows only interact with tables when you explicitly use the relevant nodes or JavaScript functions.

How can I loop through every row in a table in a workflow?
Configure the Trigger node to execute the workflow iteratively for each row in the Primary Table, optionally filtered by label values.

Is table data stored with time stamps?
No. Structured data in tables is not time-stamped. Time-series data from workflows is stored separately in the unstructured Cassandra database.

Can I pass data from one workflow to another?
Yes. Use the Send Data to Node node to transmit the received payload from one workflow to another.
