      Button Node widget Configuration Guide

      The Button Node is an interactive control widget in Rayven that allows users to trigger binary actions from a dashboard. Whether used to toggle devices on/off, switch modes, or initiate actions, this node is essential for creating real-time manual co



      Step-by-Step: How to Configure the Button Node

      1. Drag the Button node into your workflow

        • Go to Controls in the Rayven Workflow Builder.

        • Drag the Button Node onto the canvas.

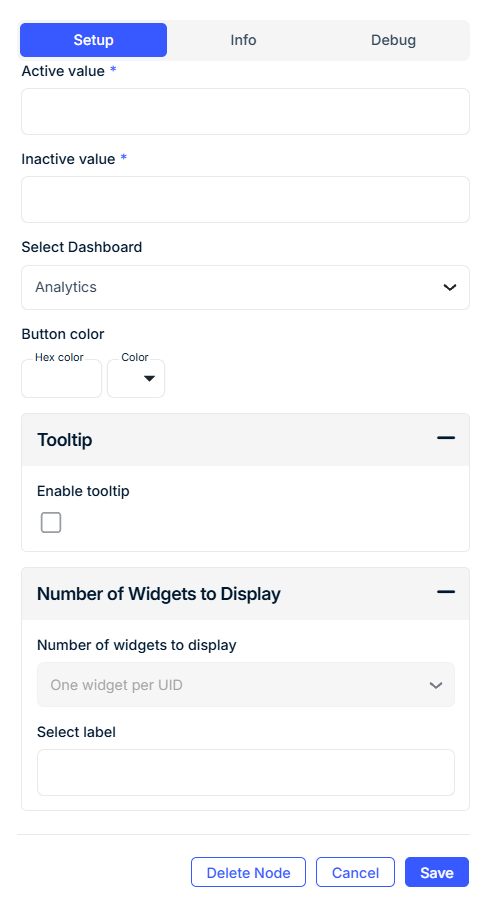

      2. Double-click to configure

        • Input/output connections are optional.

        • The button emits its value directly into the payload when clicked.

      3. Enter General Information

        • Widget Name: Give the button a clear label (e.g., Toggle Pump, Start Cycle).

        • Button Type: Choose between Button (single-action) or Switch (toggle between values).

        • Widget Subtitle (optional): Provide additional context below the title.

        • Show UID / Device Label Name: Toggle this if you want to display the associated device or label name on the button widget.

      4. Set Output Behavior

        • Data Field Name: Define the output key that will be used in the JSON payload.

        • On Value: Value sent when the button is activated (e.g., true, start, 1).

        • Off Value: Value sent when the button is deactivated or toggled off.

      5. Customize Appearance

        • Button Color: Choose a predefined color or enter a hex code (#00BFFF).

        • Tooltip (optional): Enable and define a tooltip message to show on hover.

      6. Optional: Grouping by Device Label

        • Select Label: Choose a device label (e.g., “Zone”, “Machine Type”) to filter which devices the widget affects.

        • Grouped Display:

          • No Grouping: One widget per device (Button only).

          • Group by Label Value: One widget per label value (e.g., all "Zone A" devices).

          • Group by Label Name: One widget for all devices in the label group.

      🔧 Configuration Fields

      General

      Field Requirement Description
      Widget Name* Required The button’s visible name in the interface.
      Button Type* Required Button (single click) or Switch (on/off toggle). Only Switch supports grouping.
      Widget Subtitle Optional Additional context shown beneath the main label.
      Show UID / Label Name Optional Display the device ID or label alongside the widget.


      Data Output

      Field Requirement Description
      Data Field Name* Required The key in the outgoing payload (e.g., "deviceCommand").
      On Value* Required Value emitted when the button is pressed or toggled ON.
      Off Value* Required Value emitted when the button is toggled OFF (only applies to switches).


      Appearance

      Field Requirement Description
      Button Color Optional Use the color picker or enter a hex value (#FF4500).


      Tooltip Configuration

      Field Requirement Description
      Show Tooltip Optional Enable tooltip on hover.
      Tooltip Text Optional Message displayed when hovering over the button.


      Grouping by Label

      Field Requirement Description
      Select Label Required (for grouping) Choose a label from the Workspace (e.g., "Zone", "Line", etc.).
      Grouped Display Mode Required - No Grouping: One widget per device (Button only).
      - Group by Label Value: One widget per label value.
      - Group by Label Name: One widget for all devices in the label group.


      🔎 Note: Only Switches support grouping. Buttons must be configured with "No Grouping".

       Use Cases

      • Manual device control: Toggle relays, pumps, or switches.

      • Triggering workflow actions: Start or stop logic flows.

      • User acknowledgment: Confirm completion of tasks.

      • Mode switching: Change operational state (e.g., Auto ↔ Manual).

       Best Practices

      • Use Switch for toggle scenarios and Button for one-time triggers.

      • Keep the Data Field Name unique across buttons to avoid key collisions.

      • Use Tooltips to guide users on button purpose or behavior.

      • When grouping, make sure device labels are correctly assigned and saved.

       Frequently Asked Questions (FAQ)

      Q: What’s the difference between Button and Switch?

      A: Button sends a single output when clicked. Switch toggles between two states (on/off) and sends values accordingly.

      Q: Can I display a button per device?

      A: Yes. Use No Grouping and enable One widget per UID (only available with Button type).

      Q: How do I ensure the output only affects a subset of devices?

      A: Use the Select Label field to filter the devices affected and group widgets by label values.

      Q: What value gets passed to the workflow?

      A: The value defined in On Value or Off Value is sent in the payload under the Data Field Name.
